Electric Boilers
Sussman Electric Boilers is a manufacturer of electric steam and hot water boilers and clean steam heat exchangers located in Towaco, NJ. Each boiler is built as a complete unit, factory tested and approved prior to shipment. They are also UL listed and built to proper ASME boiler codes for carbon steel and stainless steel construction. As a Sussman manufacturer’s rep, we provide technical assistance and handle new applications to determine the boiler that will suit your process. In addition to each standard boiler, we offer accessories and optional equipment that can enhance your operation.
Electric Steam Boilers:

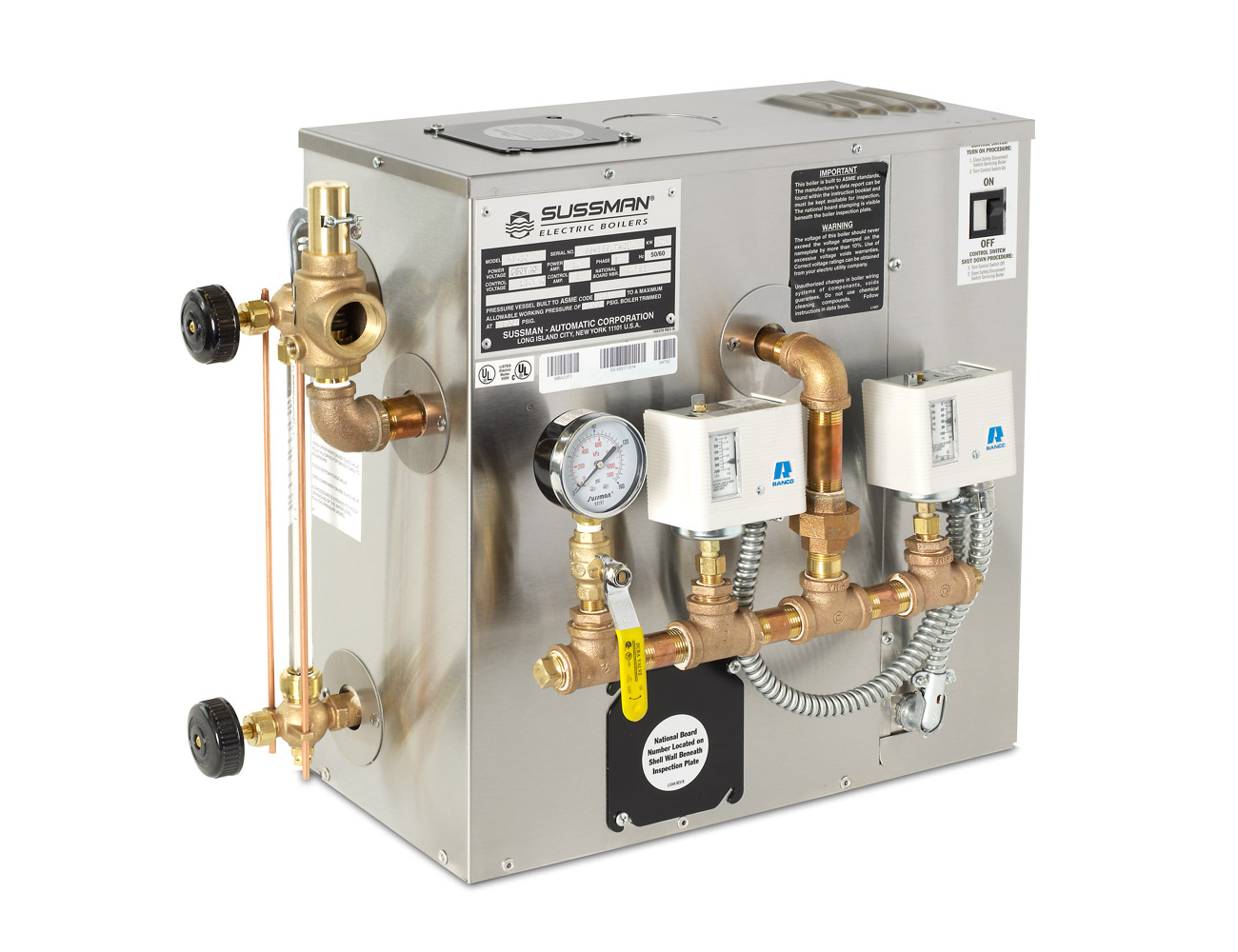

- MBA (mini boiler) model: 3KW – 20KW. 15, 50, or 100 psig trim.

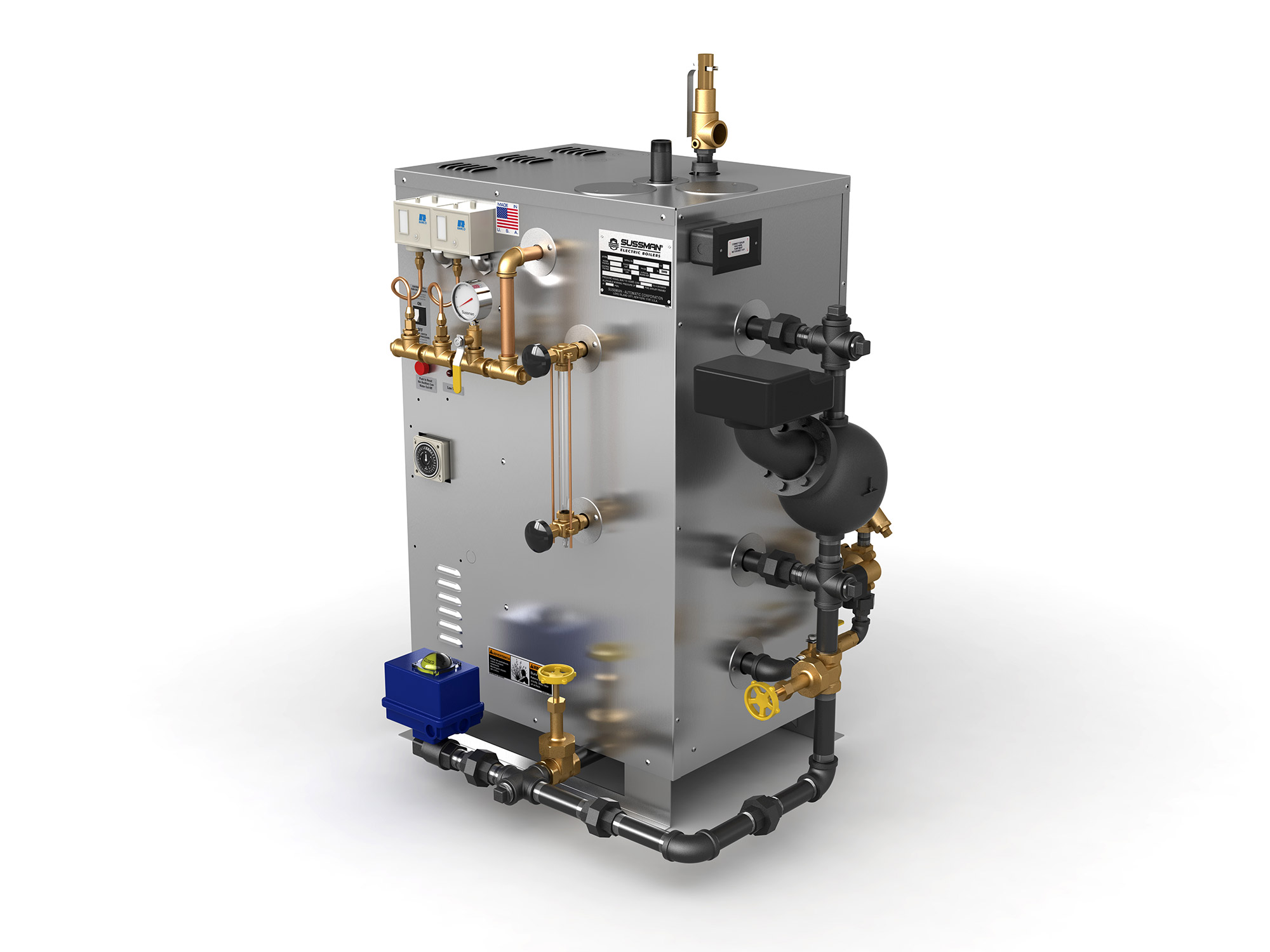

- ES model: 12KW – 180KW. 15, 50, 100, or 150 psig trim.

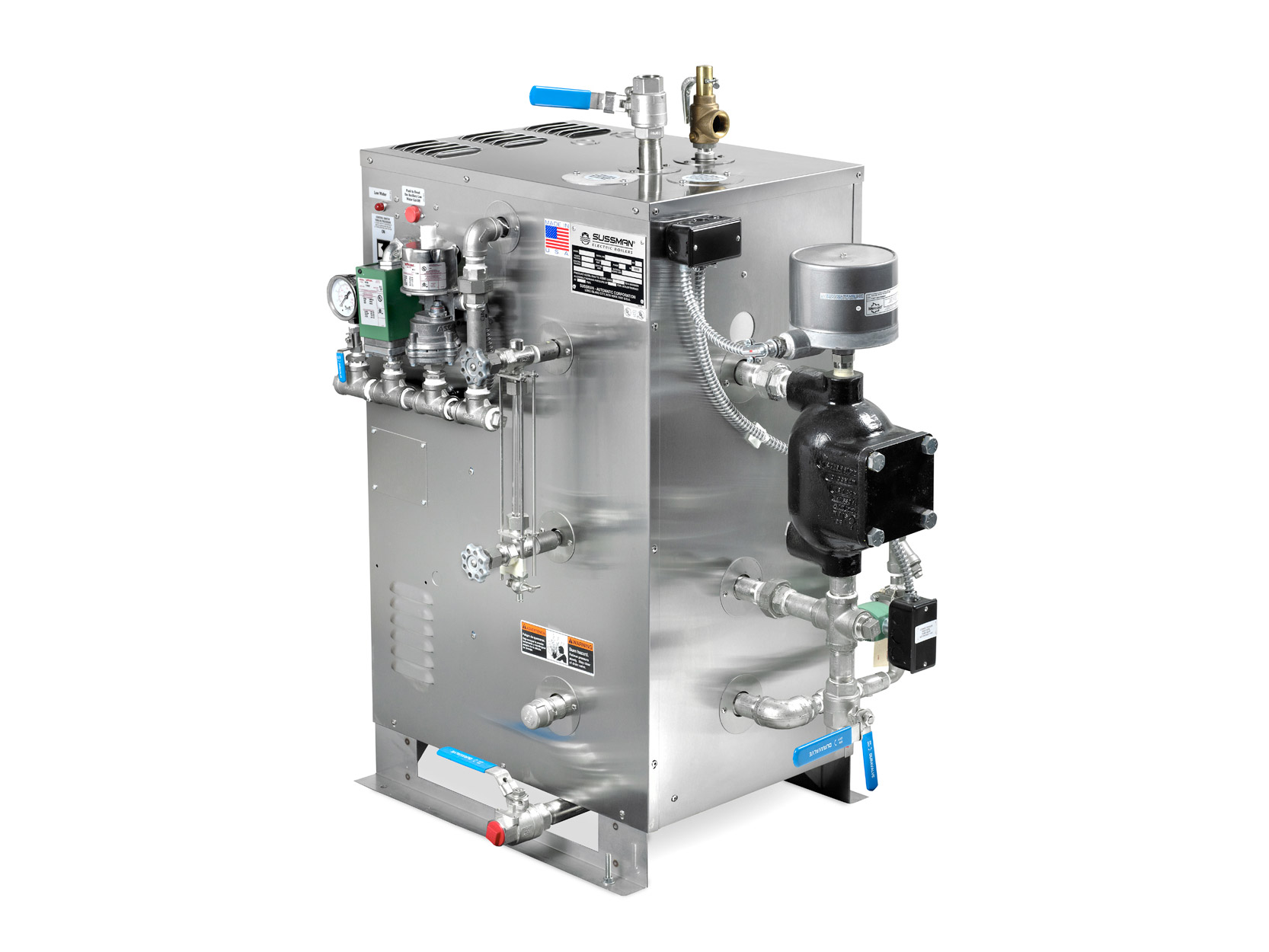

- SSB model: All wetted parts stainless steel and passivated pressure vessel. 12KW – 180 KW. 15, 50, or 100 psig trim.

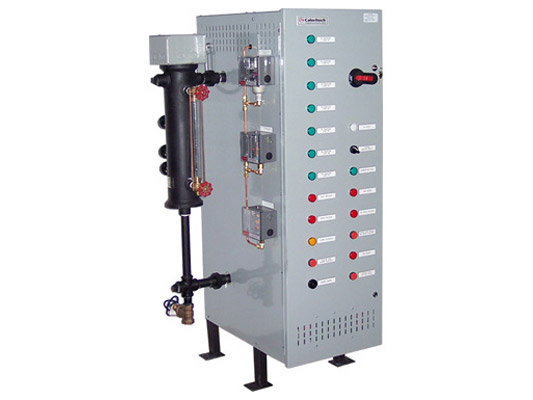

- SVS model: 12KW – 1650KW. 15, 150, 200, or 250 psig trim.
Electric Hot Water Boilers:

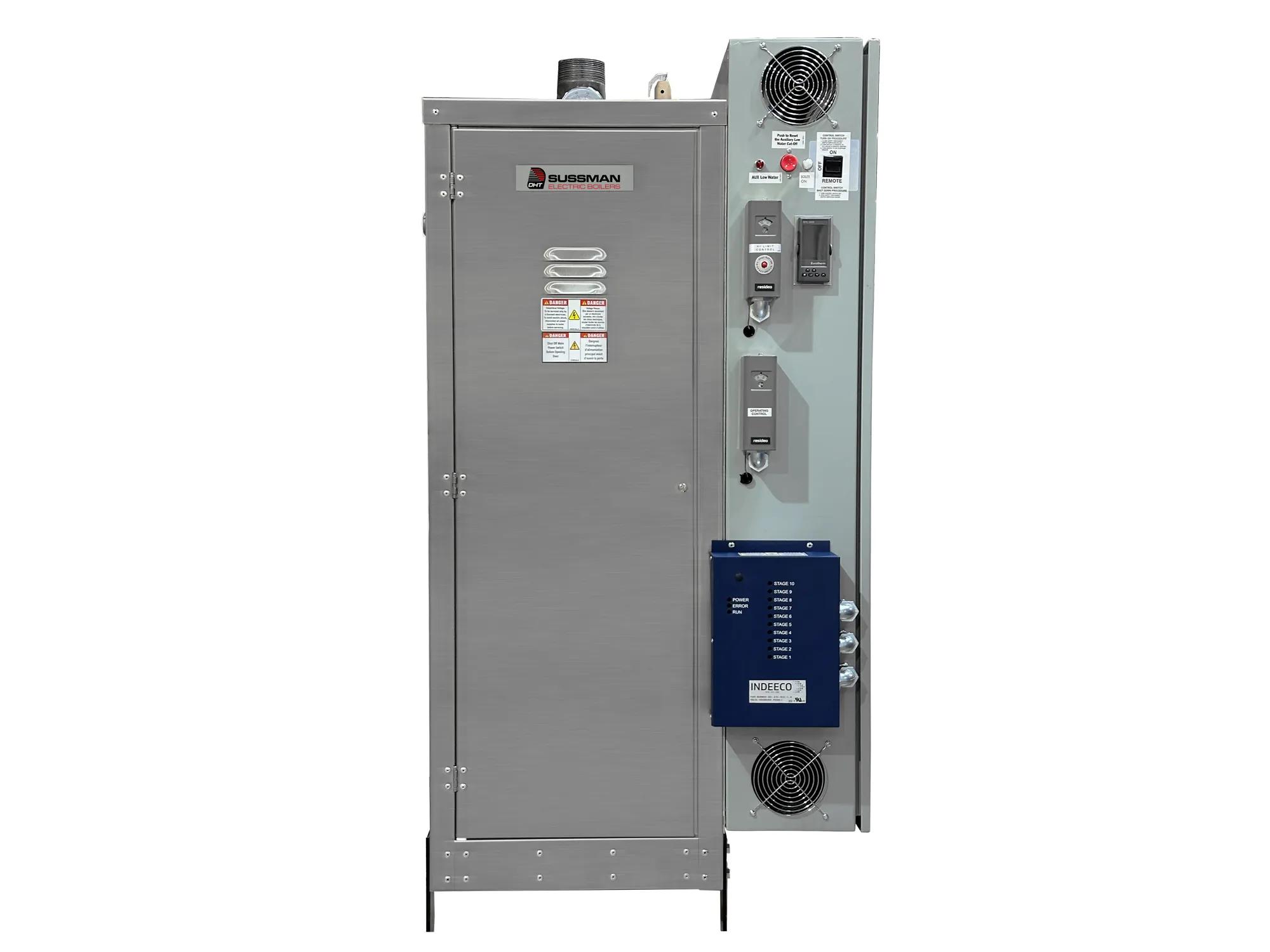

- EW model: 12KW – 315KW. 60° – 220° F operating temperature range. 150 psig trim. Includes electronic PID controls compatible with Building Management System via ModBus IP or built-in BacNet IP.

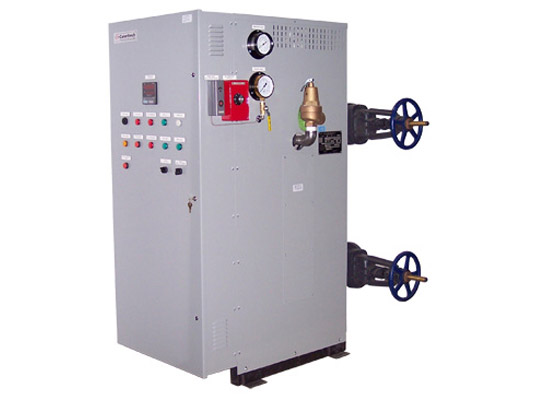

- SVW model: 12KW – 1600KW. 160° – 240° F operating temperature range. 160 psig trim.

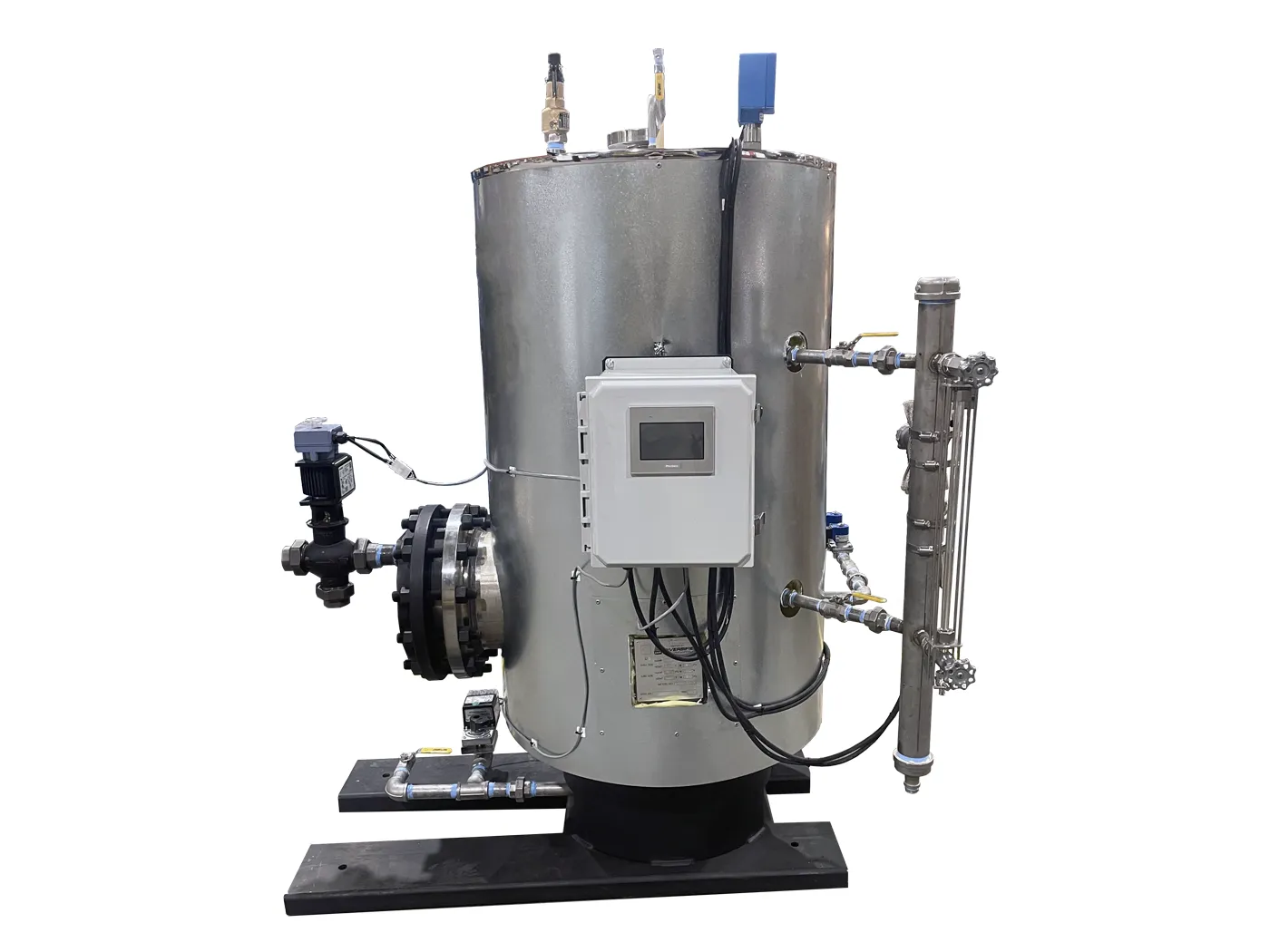

Steam to Clean Steam Exchanger:
- Plant steam is used to heat and supply product side clean steam. Used where clean steam from deionized or reverse osmosis systems is needed but cannot contact any impurities.
- Outputs up to 2000 lbs./hr. and 100 psig.
Additional Equipment:
- Feedwater motor and pump assemblies
- Condensate return systems with vacuum breaker
- Blowdown tanks
- Blowdown cooler
- Automatic blowdown systems
- Solid state progressive sequencers
- Control circuit and pump transformers
To learn more details about each product, visit the Resources page or www.sussmanboilers.com
